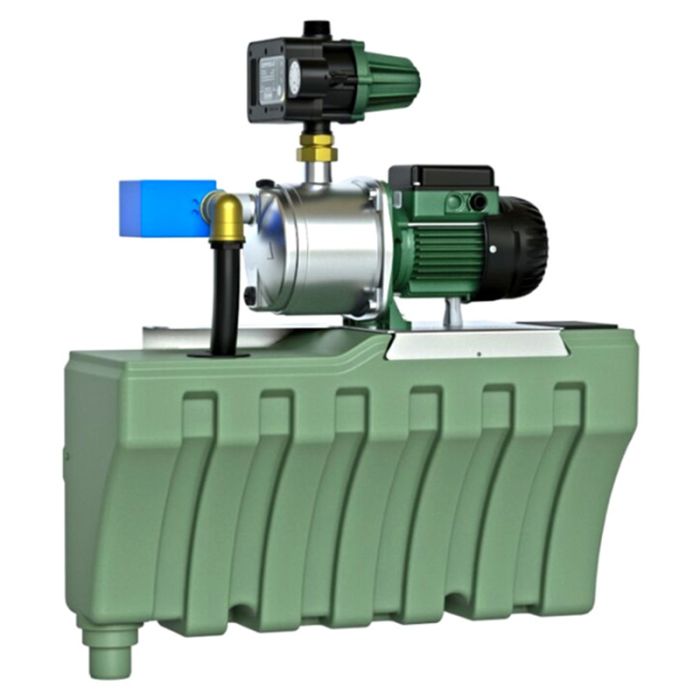

DAB Active Switch 30/50 M

The Active Switch 30/50 M is an ideal solution for recycling rainwater in a domestic or business setting. It will save you in costs and water usage, which means the pump will pay for itself in no time at all. The DAB Active Switch 30/50 M is fitted with a three-way, automatic non-return valve, which is installed on the pump's suction side. Moreover, this pump is also equipped with a recyclable polyethylene tank (15 litres) so that water is readily available and the pump does not always need to draw in water. If both the tank and the rainwater source have run dry, the pump will switch automatically to the regular water network. This ensures a constant supply of water, with rainwater given priority. This system comes fully assembled, including a wall bracket and float switch (with a 20m cable), and is therefore ready for use.

Summary

• Provides sufficient pressure and capacity for about five sprinklers
• The hose that can be used for this pump has a diameter of 1" for the delivery connection and 1" for the suction connection
• Draws water from a maximum depth of 8 metres
• The maximum delivery head is 42 metres, which equals 4.2 bar output

Contents of the kit

• DAB Active Switch 30/50 M
• Float switch
• Wall bracket
• Manual
