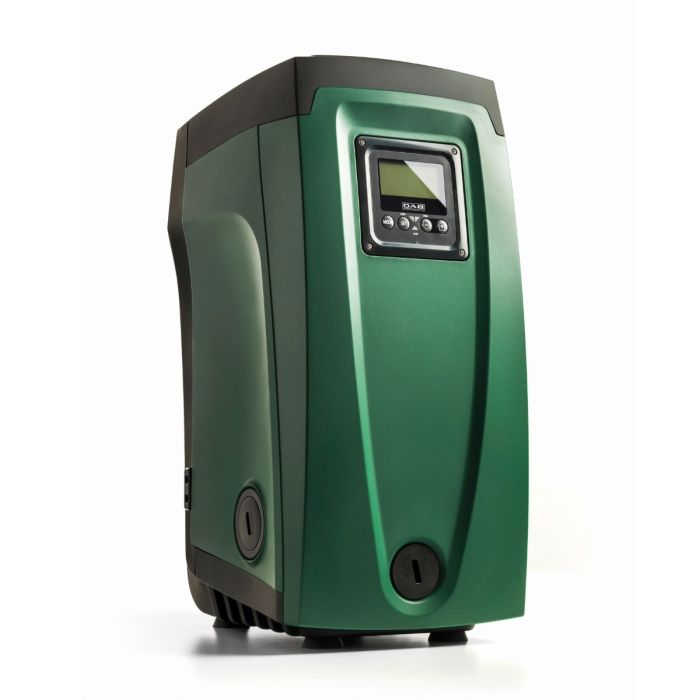

DAB Esybox
The DAB Esybox is the most advanced system currently available in the field of water supply, with a wide variety of applications, ranging from indoor pressure boosting to controlling a carwash. If you want a pump that you can leave alone once it has been installed, then the DAB Esybox is the one you want! The Esybox is equipped with a speed controller, which ensures that the pump runs only at the RPM required to pump the water, under the right pressure, to a particular location. This model is fully automated and very quiet. which, in addition to saving energy, will also extend the pump's life. This pump can be used in places with a high water requirement: for example at home (multiple taps, showers, baths, dishwashers, toilets, etc.), but also for larger irrigation systems. With this pump you can easily control various groups with the right capacity and pressure. The Esybox has a water-cooled motor that is fully corrosion-resistant. The motor can pump a maximum of 7,200 litres per hour, making use of its 2-litre pressure valve that has a 2-year warranty without maintenance requirements. Furthermore, the Esybox is fitted with a number of technical features, including:
- an electronic speed regulator, ensuring consistently constant pressure
- a speed controller with a start/stop function for specific water pressure in designated areas.
- multi-step, providing more water pressure when required.
- various sensors, such as: an electronic pressure-difference sensor, a built in temperature sensor, and a flow-rate / capacitance meter
Whether you install the DAB Esybox horizontally or vertically, in a ventilated area or a small space, this pump can handle any situation. The integrated non-return valve allows for a horizontal and a vertical setup, and the DAB Esybox is also about 30% more compact compared with traditional installations. Most importantly: the Esybox has a protective mechanism that prevents icing within the system, because the pump switches on immediately to heat itself up when temperatures drop below the freezing point. In addition to its beautifully designed pump body (also presented with the 2013 Product Design Award), this pressure-boosting system is also fitted with a 70x40 mm high-resolution LCD display, and the user-friendly interface makes the DAB Esybox very easy to control. Furthermore, the pump body is equipped with anti-vibration feet, which makes the Esybox even more quiet and comfortable; it has also been designed for a horizontal and vertical setup.
Summary
- Provides sufficient pressure and capacity for seven sprinklers
- Provides sufficient pressure and capacity for a large house and/or HOA apartment building
- The hose that can be used for this pump has a diameter of 1" for the delivery connection and 1" for the suction connection
- Draws water from a maximum depth of 8 metres
- The maximum delivery head is 65 metres, which equals 6.5 bar output
Contents of the kit:
- DAB Esybox with an integrated 2-litre water tank
- 4 anti-vibration feet
- Manual
| Manufacturer code | 60212309 |
|---|---|
| Input power (W) | 1550 Watt |
| Max. pump capacity | 7,200 l/h |
| Max. delivery head | 65 m / Pressure 6.5 bar (adjustable) |
| Insulation class | F |
| Manuals | Has Datasheet, Has manual, Has quickguide, Has Technical Sheet |
| Frequency | 50/60 Hz |
| Dimensions (l x w x h) | 26,3 x 35,2 x 56,4 cm |
| Delivery diameter | 1" |
| Max. suction depth | 8 metres |
| Max. temperature of liquid | 40°C |
| Suction diameter | 1" |
| Engine speed | 3000 rpm |
| Input power (hp) | 2,1 hp |
| Protection rating | IP44 |
| Current | 10.0 A |
| Cable type | H07RN-F |
| Cable length | 1,8 metres |
| Manufacturer | DAB |
| Warranty | 2-year |
| Product package | DAB Esybox, 4 anti-vibration feet, manual |
| Golden Product Promo | No |
| Product Best Choice Excerpt | For increasing water pressure in the home |
| PDP Delivery Date | Delivery in 1-2 working days |
| PLP Delivery Date | Delivery in 1-2 working days |
| Restocking Date | 10 May 2024 |
| Faq Question 1 | What is the difference between a regular booster pump and the DAB Esybox? |
| Faq Answer 1 | <p>The DAB Esybox comes equipped with the latest technology, which distinguishes it from the entire market. Regular booster pumps are louder (about 85 dB versus about 45 dB) and not speed controlled. In particular, the pump’s speed controller makes it stand out from the rest.</p> |
| Faq Question 2 | What is the difference between the DAB Booster Silent and the DAB Esybox? |
| Faq Answer 2 | <p>The DAB Esybox distinguishes itself mainly in terms of the integrated speed controller, its higher capacity and pressure, and its compactness. Both models are compared in our blog, which can be referred to here.</p> |
| Faq Question 3 | What is a speed controller? |
| Faq Answer 3 | <p>A speed controller ensures that the pumps runs at an RPM in line with the water requirement, which means that it will usually run at a low speed. If only one tap is opened, the pump's RPM will be exactly enough to keep the tap at the right pressure. This means that your pump is extremely energy efficient and will last a very long time.</p> |
| Faq Question 4 | What can I use this pump for? |
| Faq Answer 4 | <p>This pump is suitable for the following applications: Watering, spraying, and irrigating a garden or lawn (even with several groups) Hosing down a terrace, decking or garden furniture Supplying water/rainwater for your washing machine, toilet, sink, shower, etc. Increasing water pressure Controlling a carwash and other water systems</p> |
| Faq Question 5 | Can this pump be connected to the existing mains water pipes in my house? |
| Faq Answer 5 | <p>Yes, this pump can be connected to the existing mains water pipes in your house. If the water pressure in your home is too low or if you want to increase the number of draw-off points, the DAB Esybox will be the perfect solution.</p> |
| Faq Question 6 | What kind of water can I pump with this model? |
| Faq Answer 6 | <p>The DAB Esybox is only suitable to pump clean water, i.e. water that is free from very large solid particles (< 2 mm). This means that you can also pump water from a canal or ditch, but subject to certain conditions: We recommend making use of a suction hose with a brass connection (better filtration). We recommend making use of a pre-filter (this allows for extra filtering before the water enters the pump). In addition, the water should not be. colder than 0°C and not warmer than 35°C</p> |
| Faq Question 7 | Is the pump suitable for continuous operation? |
| Faq Answer 7 | <p>Yes, this pump is perfect for continuous operation.</p> |
| Faq Question 8 | Is it advisable to use a pre-filter? |
| Faq Answer 8 | <p>If the water is virtually the same as drinking water, no pre-filter is needed. However, if the water pumped contains solids - for example, water from a ditch or canal - we recommend using a pre-filter.</p> |
| Faq Question 9 | How should the pump be installed? |
| Faq Answer 9 | <p>The pump and the entire connected system need to be protected against frost and inclement weather conditions. Therefore, place the pump in a dry location with an ambient temperature from 5°C to 40°C, to allow the motor to cool sufficiently. Furthermore, all connected pipes must be absolutely watertight and airtight to prevent damage and loss of performance.</p> |
| Faq Question 10 | The water to be drawn in by the pump is situated at a level lower than nine metres. How do I handle this? |
| Faq Answer 10 | <p>Generally, garden pumps and booster pumps can draw in water from a maximum depth of nine metres. If the water is occasionally at a depth lower than nine metres, you will need to use a borehole pump, which is placed in the well and usually has a delivery head of 50 metres and over. Check our range of borehole pumps.</p> |
| Faq Question 11 | What happens if the water from the source is finished? |
| Faq Answer 11 | <p>This is a water-cooled model pump, which means that it cools itself with the water it pumps. When the water from the source is finished - for example, if the water level has dropped below nine metres - the pump will normally keep running with no water supply. This is referred to as 'dry running' and may cause the pump to become overheated, which could ruin it. However, the pump is fitted with an integrated dry-running protection system, which protects the pump instantly from running dry. The DAB Esybox switches off automatically when no water can be supplied.</p> |
| Faq Question 12 | Is the pump suitable for a drinking-water system? |
| Faq Answer 12 | <p>Yes, this pump is suitable for a drinking-water system.</p> |
| Faq Question 13 | Is the pump supplied ready to use? |
| Faq Answer 13 | <p>Yes, you can start using the pump immediately, but it is not supplied with accessories such as a suction hose, a filter, and a discharge hose. If needed, these can be ordered conveniently from our webshop together with your pump. Click here for available accessories for the DAB Esybox.</p> |
| Faq Question 14 | What items does this kit include? |
| Faq Answer 14 | <p>DAB Esybox with an integrated 2-litre water tank 4 anti-vibration feet Manual</p> |
