DAB Evoplus 80/180 XM

The DAB Evoplus (small) is a circulation pump suitable for medium-sized systems. Like all other DAB circulation pumps, this model is also equipped with an integrated speed controller. This makes the DAB Evoplus more energy efficient than traditional circulation pumps. The speed controller ensures that the DAB Evoplus runs only at the RPM speed required to provide the right amount of water and pressure:

• Taps open: maximum capacity; the pump runs at full speed
• Taps slightly open: minimum capacity; the pump runs slowly

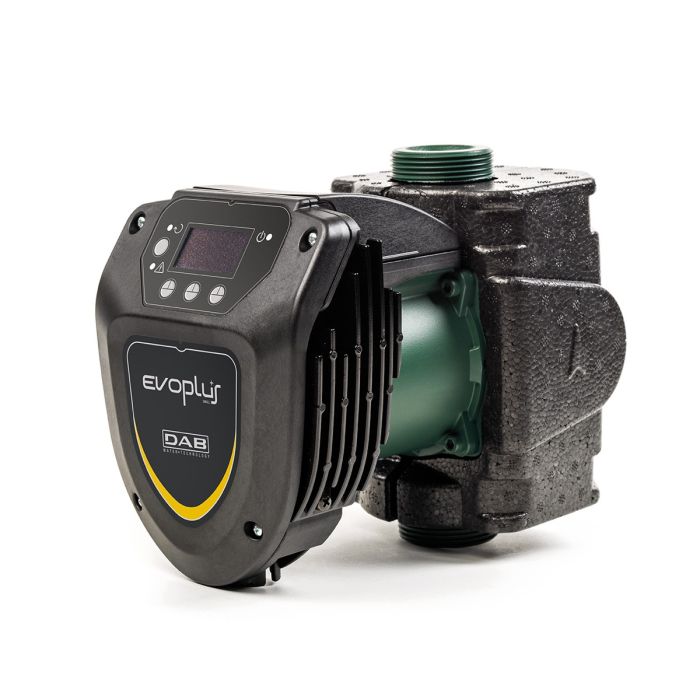

The DAB Evoplus (small) is an in-line version with a threaded connection, as shown in the product picture. If you are looking for a model with a flanged connection, please consult our product range. Operating the DAB Evoplus is very easy with four physical buttons. The OLED display and the LEDs on the circulation pump will indicate the rest. This allows you to set the pump to three different operational modes:

• Regulation with constant curve (like a traditional pump)
• Regulation with constant differential pressure
• Regulation with proportional differential pressure

Applications

DAB Evoplus circulation pumps are suitable for heating, ventilation and cooling systems in residential and commercial buildings, such as:

• Larger residential homes
• Hospitals
• Apartment buildings
• Schools
• Care homes
• Office buildings

Communication / Serial communication

The DAB Evoplus (small) can be expanded by means of a communication module for additional comfort; you can opt for these two modules:

Basic module

• Remote start/stop of the circulation pump
• Economy mode (additional energy saving)

Multi module

• 2 analogue signals 0-10 V
• 1 PWM signal
• 1 analogue signal 4-20 mA
• 1 analogue signal T
• Modbus or LON Bus
