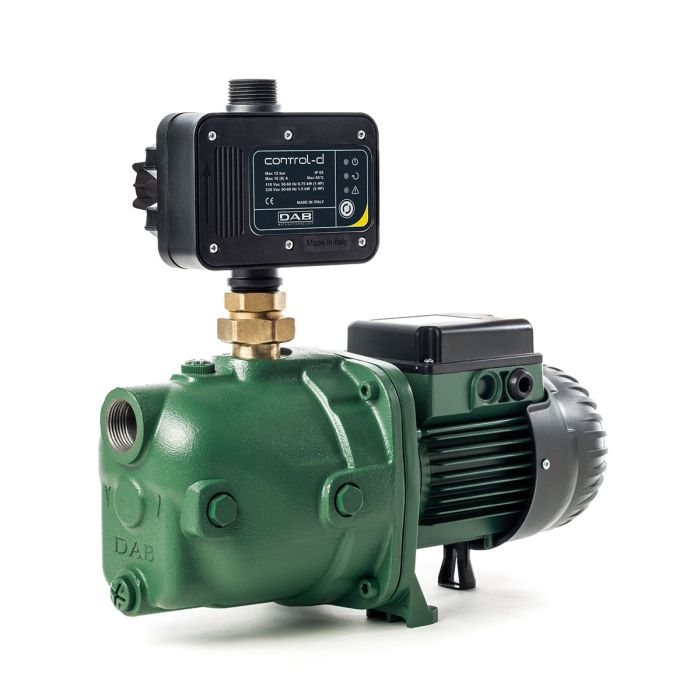

DAB Jet 102 M + Control-D
£301.49
In stock
SKU
8059893319999
Automatic pump of the highest quality for up to four water points.
The DAB Jet 102 M Garden Pump is a self-priming water pump of the highest quality; neither effort nor expense were spared in its development. Thanks to the materials used and to the innovative approach, this pump is top notch in its class.
This garden pump is equipped with a DAB Control-D, which turns it into an automatic pump. When a tap is opened, the pump will switch on automatically, and off again when the tap is closed. If the source (the place where the water comes from) is dry, the DAB Control-D ensures that the pump is switched off automatically, so that it does not sustain damage due to running dry. Thanks to the interlinked cables between the pump and the DAB Control-D you can start immediately.
The pump can be used for a wide range of situations:
- Watering, spraying, and irrigating a garden or lawn
- Hosing down a terrace, decking or garden furniture
- Draining spaces or wells
- Supplying water/rainwater for your washing machine, toilet, sink, or shower in a separate circuit
The pump's manageability has been given some serious thought. In particular its compact and light design, as well as its quiet operation, making this pump extremely suitable for almost any situation that involves supplying water and providing pressure.
The DAB Jet line was developed to supply water and to generate increased water pressure in domestic environments, as well as in agriculture, horticulture, and industry, where the self-priming function is necessary.
Summary
- Provides sufficient pressure and capacity for about foufr sprinklers
- The hose that can be used for this pump has a diameter of 1" for the delivery connection and 1" for the suction connection
- Draws water from a maximum depth of 8 metres
- The maximum delivery head is 54 metres, which equals 5.4 bar output
Contents of the kit
- DAB Jet 102 M with an assembled DAB Control-D
- Manual
| Manufacturer code | 60212446 |
|---|---|
| Input power (W) | 1130 Watt |
| Max. pump capacity | 3,600 l/h |
| Max. delivery head | 54 m / Pressure 5.4 bar |
| Insulation class | F |
| Manuals | Has Datasheet, Has manual, Has quickguide |
| Frequency | 50 Hz |
| Dimensions (l x w x h) | 41,4 x 17,8 x 39 cm |
| Delivery diameter | 1" |
| Max. temperature of liquid | 40°C |
| Suction diameter | 1" |
| Engine speed | 2850 rpm |
| Input power (hp) | 1,5 hp |
| Protection rating | IP44 |
| Current | 5.1 A |
| Cable length | 1,8 metres |
| Manufacturer | DAB |
| Warranty | 2-year |
| Product package | DAB Jet 102 M with mounted DAB Control-D, manual, plug adaptor to G-3 pin (British) |
| Golden Product Promo | No |
| PDP Delivery Date | Delivery in 1-2 working days |
| PLP Delivery Date | Delivery in 1-2 working days |
| Faq Question 1 | What kind of water can I pump with this model? |
| Faq Answer 1 | <p>The DAB Jet 102 M is only suitable to pump clean water, i.e. water that is free from large solid particles (< 2 mm). This means that you can also pump water from a canal or ditch, but subject to certain conditions: We recommend making use of a suction hose with a brass connection (better filtration). We recommend making use of a pre-filter (this allows for extra filtering before the water enters the pump). In addition, the water should not be colder than 0°C and not warmer than 35°C.</p> |
| Faq Question 2 | What can I use this pump for? |
| Faq Answer 2 | <p>This pump is suitable for the following applications: Watering, spraying, and irrigating your garden or lawn Hosing down a terrace, decking, or garden furniture Draining spaces or wells Supplying water/rainwater for your washing machine, toilet, sink, or shower in a separate circuit</p> |
| Faq Question 3 | Is the pump suitable for continuous operation? |
| Faq Answer 3 | <p>Yes, this pump is perfect for continuous operation.</p> |
| Faq Question 4 | Is it advisable to use a pre-filter? |
| Faq Answer 4 | <p>If the water is virtually the same as drinking water, no pre-filter is needed. However, if the water pumped contains solids − for example, water from a ditch or canal − we recommend using a pre-filter.</p> |
| Faq Question 5 | How should the pump be installed? |
| Faq Answer 5 | <p>The pump and the entire connected system need to be protected against frost and inclement weather conditions. Therefore, place the pump in a dry location with an ambient temperature from 5°C to 40°C, to allow the motor to cool sufficiently.</p> |
| Faq Question 6 | What is the advantage of a suction hose with a brass connection versus a plastic connection? |
| Faq Answer 6 | <p>A suction hose with a brass connection is more solid and is fitted with a better suction filter. That is exactly why we recommend installing this type of hose if you plan to pump water from a canal or ditch.</p> |
| Faq Question 7 | The water to be drawn in by the pump is situated at a level lower than nine metres. How do I handle this? |
| Faq Answer 7 | <p>Generally, garden pumps and booster pumps can draw in water from a maximum depth of nine metres. If the water is occasionally at a depth lower than nine metres, you will need to use a borehole pump, which is placed in the well and usually has a delivery head of 50 metres and over. Check our range of borehole pumps.</p> |
| Faq Question 8 | What happens if the water from the source is finished? |
| Faq Answer 8 | <p>This is a water-cooled model pump, which means that it cools itself with the water it pumps. When the water from the source is finished − for example, if the water level has dropped below nine metres − the pump will keep running with no water supply. This is referred to as 'dry running', and may cause the pump to become overheated, which could ruin it. You can prevent this from happening by using a dry-running protection system, which ensures that the pump switches off automatically when no water is supplied.</p> |
| Faq Question 9 | Is the pump suitable for a drinking-water system? |
| Faq Answer 9 | <p>No, the pump is made of cast iron, and is therefore unsuitable for a drinking-water system.</p> |
| Faq Question 10 | Can this pump be connected to the existing mains water pipes in my house? |
| Faq Answer 10 | <p>This pump can be connected to your existing mains water pipes by means of a control system, but we advise using a booster pump if you want to optimise your water-supply pressure. Click here if you want to know how a booster pump works.</p> |
| Faq Question 11 | Is the pump supplied ready to use? |
| Faq Answer 11 | <p>This pump is supplied without a cable connection and accessories such as a suction hose, filter, and discharge hose. If needed, these can be ordered conveniently from our webshop together with your pump. Click here for available accessories for the DAB Jet 102 M.</p> |
| Faq Question 12 | What items does this kit include? |
| Faq Answer 12 | <ul> <li>DAB Jet 102 M</li> <li>DAB Control-D</li> <li>Cabling</li> <li>Manual</li> </ul> |
