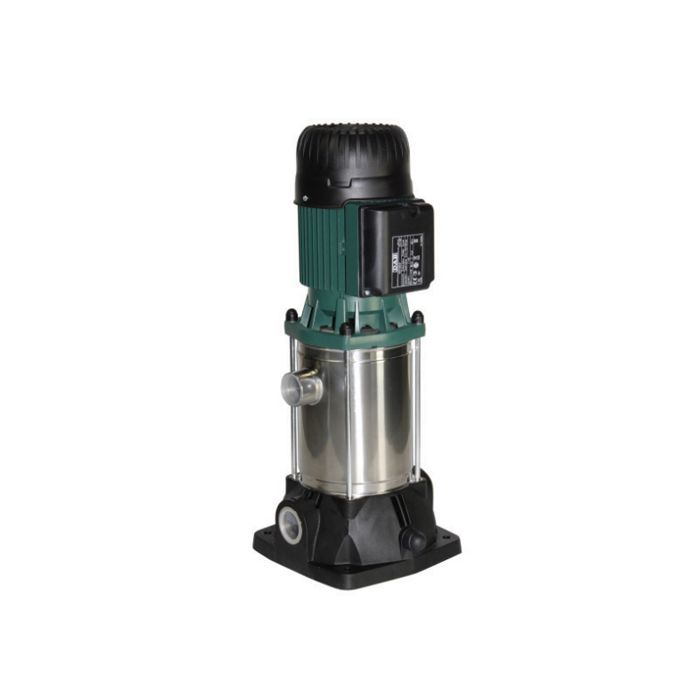

DAB KVCX 55-80 M
The DAB KVCX 55-80 M is a robust centrifugal pump from top brand DAB. This centrifugal pump is suitable for pumping large amounts of water and is therefore also ideally suited for irrigating larger plots of land or as a pressure-boosting system.
The DAB KVCX series is known for its two outlets on the pump. You may choose between the outlet on the bottom of the pump or the outlet on the pump housing. One of these outlets is sealed by default, but you are free to adjust the pump to your liking.
Given that this is a centrifugal pump, several precautionary measures must be taken before use. This because a centrifugal pump must be directly supplied with water.
- Always use a suction hose with check valve.
- Completely fill the hose with water
- Fill the entire pump housing with water
After taking these precautionary measures, you can directly start using your pump. Moreover, the overall lifespan of the pump will also be significantly increased.
- The hose used for this pump has a delivery diameter of 1.25" and suction diameter of of 1.25"
- Sucks up water from a maximum depth of 8 m
- The maximum head rate is 85 m, which is equal to an output of 8.5 bar
| Manufacturer code | 60211903 |
|---|---|
| Input power (W) | 2460 Watt |
| Max. pump capacity | 7,200 litres per hour |
| Max. delivery head | 85 metres or max. 8,5 bar output |
| Manuals | Has manual |
| Dimensions (l x w x h) | 22,1 x 23,5 x 65,5 cm |
| Delivery diameter | 1 ¼" |
| Max. temperature of liquid | 40°C |
| Suction diameter | 1 ¼" |
| Input power (hp) | 3,3 hp |
| Manufacturer | DAB |
| Warranty | 2-year |
