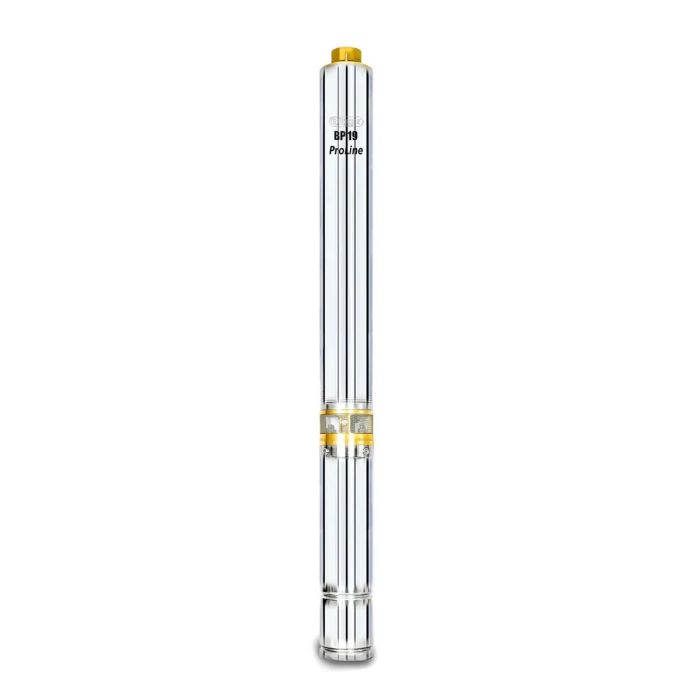

EL BP 19/4 ProLine
£372.08
Out of stock
SKU
5999881825954
Powerful borehole pump model, specifically for connecting to sprinklers.
The Elpumps BP 19/4 ProLine borehole pump is ideal for discharging water situated at a depth greater than eight metres. If you are looking for a pump that fits a narrow borehole, the BP 19/4 ProLine is a perfect solution. The small diameter (4” = 10 cm) of its stainless-steel body makes it a perfect model for narrower boreholes (from 10 cm).
The BP 19/4 ProLine has a maximum pump capacity of 5,200 litres per hour. Another important feature is the pump’s delivery head of 120 metres, which equals a pressure of 12.0 bar. If you want to run multiple sprinklers at the same time, it is important to calculate the pipe resistance to determine which pump is most suitable in your situation. You can calculate this on the basis of details such as the delivery head, the diameter and length of the hose or pipe, possible branching, and the water requirements of the sprinklers.
The BP 19/4 ProLine consists of two main components: a powerful motor (1,800 W) at the bottom and the pump unit at the top, which are separated from each other. The advantage is that it is easier to repair or maintain the device because you only need to replace the damaged component rather than the entire pump. The pump is also fitted with 19 Noryl PPO impellers. These 19 impellers ensure that the pump has enough suction to draw in water, which then runs through the device and cools it. The solid suspension eye bolts on top of the pump body allow the device to hang safely in the water source from a rope or a cable.
Elpumps BP series
The high-quality borehole pumps in the Elpumps BP series can be used for a variety of purposes, including domestic water supply, agricultural irrigation, or watering the garden. These pumps help reduce the risk of a potential water shortage because they can also be used in remote wetlands. This means you will never run out of water.
Each Elpumps BP series borehole pump is fitted with a premium INOX casing of stainless steel. It is corrosion resistant and therefore less likely to be affected by rust or other environmental influences. In this manner, Elpumps guarantees a long, corrosion-free service life. Automatic borehole pump
Please note: The Elpumps BP series has no built-in dry-running protection system and does not switch on and off automatically on the basis of your water consumption. If you need this feature, the pump can be connected to the DAB Control-D or the DAB Active Driver pump controller.
Applications
- Creating pressure in waterpipes
- Supplying water from boreholes and wells
- Irrigating and watering
- Supplying water for livestock farming
- Lowering groundwater levels
More Information
| Manufacturer code | BP19/4 PROLINE |
|---|---|
| Input power (W) | 1800 Watt |
| Max. pump capacity | 5,200 l/h |
| Max. delivery head | 120 m / Pressure 12.0 bar |
| Frequency | 50 Hz |
| Delivery diameter | 1 ¼” |
| Max. temperature of liquid | 35°C |
| Protection rating | IP X8 |
| Cable type | H07 RN-F 4G 1 mm2 |
| Cable length | 20 metres |
| Well size | 4" (10 cm) |
| Manufacturer | EL Pumps |
| Warranty | 2-year |
| Product package | EL BP 19/4 ProLine Borehole pump, Manual |
| Golden Product Promo | No |
| PDP Delivery Date | Expected as of 19-05-2025 |
| PLP Delivery Date | Expected as of 19-05-2025 |
| Faq Question 1 | What kind of water can I pump with this model? |
| Faq Answer 1 | The Elpumps BP 19/4 ProLine series is only suitable for pumping clean water. Therefore, ensure that the water is free from sand, gravel, or debris, and that the water temperature is not lower than 0°C and not higher than 35°C. |
| Faq Question 2 | In what situations can I use this pump? |
| Faq Answer 2 | This pump is suitable for the following applications: ● Creating pressure in waterpipes ● Supplying domestic water supply from boreholes and wells ● Irrigating from reservoirs and boreholes ● Supplying water for livestock farming ● Lowering groundwater levels ● Providing fire protection systems |
| Faq Question 3 | How do I install a borehole pump? |
| Faq Answer 3 | The pump can be immersed in water by means of a rope or cable that is connected to the solid suspension eye bolts on top of the pump. To prevent the pump from drawing in sand, gravel, or debris, it should not rest on the bottom of the well or other source but be suspended at least 50 centimetres above it. Furthermore, a borehole pump may be submerged to a maximum depth of 10 metres below water level. |
| Faq Question 4 | Can I convert this model into an automatic pump? |
| Faq Answer 4 | Yes, this pump can be converted into an automatic device by means of the DAB Active Driver or the DAB Control-D, which also protect the pump from running dry. |
| Faq Question 5 | What items does this kit include? |
| Faq Answer 5 | Elpumps BP 19/4 ProLine borehole pump |
