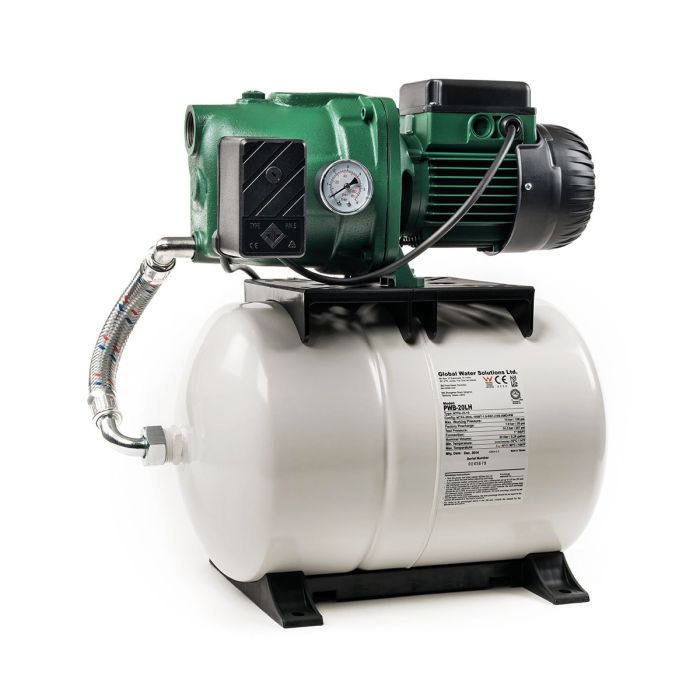

DAB Aquajet 102 M
Special Price
£337.79
Regular Price
£406.26
In stock
SKU
8059893319937
Automatic pump of the highest quality for up to four water points.
The DAB Aquajet 102 M water pressure boosting pump is suitable for increasing pressure in your water pipes, for supplying water (e.g. rainwater for the toilet or for cleaning), or for using water from wells and tanks for irrigation purposes. Thanks to its water tank, the pump does not constantly switch on/off, which means that it is more energy efficient and less power is being used. The pre-assembled pump comes with a 20-litre tank and a pump-connection kit. The pump is ready for immediate use, and, owing to its compact setup, is also suitable for small spaces.
Summary
- Provides sufficient pressure and capacity for about four sprinklers
- The hose that can be used for this pump has a diameter of 1" for the delivery connection and 1" for the suction connection
- Draws water from a maximum depth of 8 metres
- The maximum delivery head is 54 metres, which equals 5.4 bar output
Contents of the kit
- DAB Aquajet 102 M Booster Pump
- Manual
| Manufacturer code | 60213102H |
|---|---|
| Input power (W) | 1130 Watt |
| Max. pump capacity | 3,600 l/h |
| Max. delivery head | 54 m / Pressure 5.4 bar |
| Insulation class | F |
| Manuals | Has manual |
| Frequency | 50 Hz |
| Dimensions (l x w x h) | 51 x 30,3 x 48,9 cm |
| Delivery diameter | 1" |
| Max. suction depth | 8 metres |
| Max. temperature of liquid | 40°C |
| Suction diameter | 1" |
| Engine speed | 2850 rpm |
| Input power (hp) | 1,5 hp |
| Protection rating | IP44 |
| Current | 5.1 A |
| Outlet size | Sempre in voga! |
| Cable type | H07RN-F |
| Cable length | 1,8 metres |
| Manufacturer | DAB |
| Warranty | 2-year |
| Product package | DAB Aquajet 102/20 M Booster Pump, manual |
| Golden Product Promo | No |
| PDP Delivery Date | Delivery in 1-2 working days |
| PLP Delivery Date | Delivery in 1-2 working days |
| Restocking Date | 10 Apr 2025 |
| Faq Question 1 | What is the advantage of a booster pump versus a garden pump? |
| Faq Answer 1 | <p>A booster pump is essentially a garden pump with a number of extra components, such as: An integrated pressure switch, which ensures that the pump switches on or off automatically if water supply is needed.What is the advantage of a booster pump versus a garden pump? A pressure vessel (water tank), which ensures that you instantly have water at your disposal, and the pump does not need to switch on until the water in the pressure vessel starts to run low. As a result, the booster pump does not need to switch on if only small amounts of water (a few litres) are needed. First the water from the pressure vessel is used and supplied where it is required. As soon as the water level in the pressure vessel is about to drop too low, the pump switches on automatically to refill it. As well as saving energy, the system runs much more quietly, and ensures that you always have water instantly at your disposal.</p> |
| Faq Question 2 | What can I use this pump for? |
| Faq Answer 2 | <p>This pump is suitable for the following purposes: Watering, spraying, and irrigating a garden or lawn Hosing down a terrace, decking or garden furniture Supplying water/rainwater for your washing machine, toilet, sink, shower, etc. Increasing water pressure in your water pipes</p> |
| Faq Question 3 | Can this pump be connected to the existing mains water pipes in my house? |
| Faq Answer 3 | <p>Yes, this pump can be connected to the existing mains water pipes in your house. However, this is not recommended, because the pump’s high-pressure output is not controllable. For the most suitable system, opt for the DAB e.sybox mini.</p> |
| Faq Question 4 | What kind of water can I pump with this model? |
| Faq Answer 4 | <p>The DAB Aquajet 102 M is only suitable to pump clean water, i.e. water that is free from very large solid particles (< 2 mm). This means that you can also pump water from a canal or ditch, but subject to certain conditions: We recommend making use of a pre-filter (this allows for extra filtering before the water enters the pump). In addition, the water should not be colder than 0°C and not warmer than 35°C.</p> |
| Faq Question 5 | Is the pump suitable for continuous operation? |
| Faq Answer 5 | <p>Yes, this pump is perfect for continuous operation.</p> |
| Faq Question 6 | Is it advisable to use a pre-filter? |
| Faq Answer 6 | <p>If the water is virtually the same as drinking water, no pre-filter is needed. However, if the water pumped contains solids - for example, water from a ditch or canal - we recommend using a pre-filter.</p> |
| Faq Question 7 | How should the pump be installed? |
| Faq Answer 7 | <p>The pump and the entire connected system need to be protected against frost and inclement weather conditions. Therefore, place the pump in a dry location with an ambient temperature from 5°C to 40°C, to allow the motor to cool sufficiently. Furthermore, all connected pipes must be absolutely watertight and airtight to prevent damage and loss of performance.</p> |
| Faq Question 8 | The water to be drawn in by the pump is situated at a level lower than nine metres. How do I handle this? |
| Faq Answer 8 | <p>Generally, garden pumps and booster pumps can draw in water from a maximum depth of nine metres. If the water is occasionally at a depth lower than nine metres, you will need to use a borehole pump, which is placed in the well and usually has a delivery head of 50 metres and over. Check our range of borehole pumps.</p> |
| Faq Question 9 | What happens if the water from the source is finished? |
| Faq Answer 9 | <p>This is a water-cooled model pump, which means that it cools itself with the water it pumps. When the water from the source is finished - for example, if the water level has dropped below nine metres - the pump will usually keep running with no water supply. This is referred to as 'dry running' and may cause the pump to become overheated, which could ruin it. This pump is not fitted with a dry-running protection system, which can be ordered separately. Please refer to the dry-running protection system.</p> |
| Faq Question 10 | Is the pump suitable for a drinking-water system? |
| Faq Answer 10 | <p>No, the pump is not suitable for a drinking-water system.</p> |
| Faq Question 11 | Is the pump supplied ready to use? |
| Faq Answer 11 | <p>Yes, you can start using the pump immediately. Click here for available accessories for the DAB Aquajet 102 M.</p> |
| Faq Question 12 | What items does this kit include? |
| Faq Answer 12 | <p>DAB Aquajet 102 M Manual</p> |
