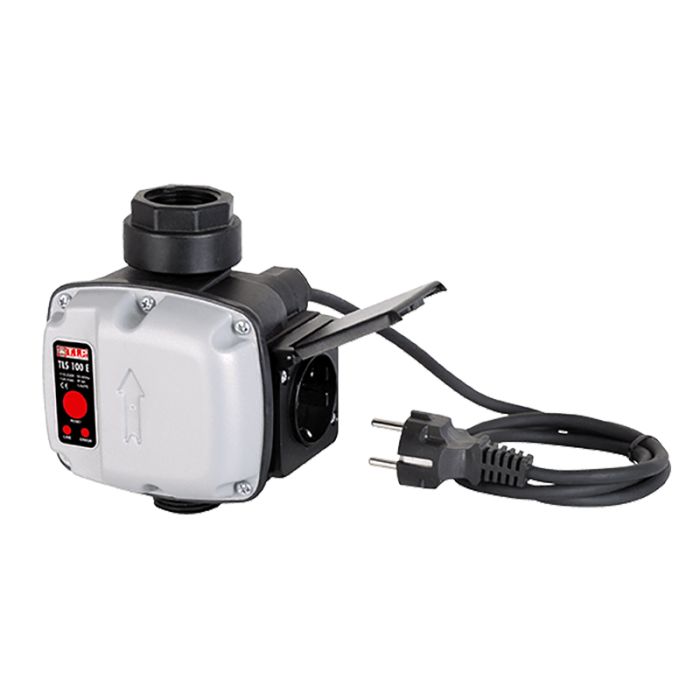

Dry-running protection system

Not all garden, booster and borehole pumps come already equipped with a built-in dry-running protection system. For that reason, this system was developed and can easily be mounted to the pump. The system ensures that your pump switches off automatically as soon as the water source no longer supplies water, so that the pump does not sustain damage due to running dry.

• Inlet size: 1" male thread
• Outlet size: 1" female thread

Installation of this system
First, the system needs to be screwed on the pump outlet and, thanks to the 1" screw size, it is compatible with most regular pumps. The dry-running protection system is equipped with a socket outlet and a plug. Simply put the pump's plug into the socket outlet of the dry-running protection system. Next, plug the system into a socket that is connected to the mains current.
As soon as the pump is switched on, the dry-running protection system will begin to measure continually whether water is running through the system.  If it is not, the system will cut the power supply to the pump so that it switches off. In that case, the red light on the system will light up, after which the system can be restarted with a manual reset (by pressing the button).
