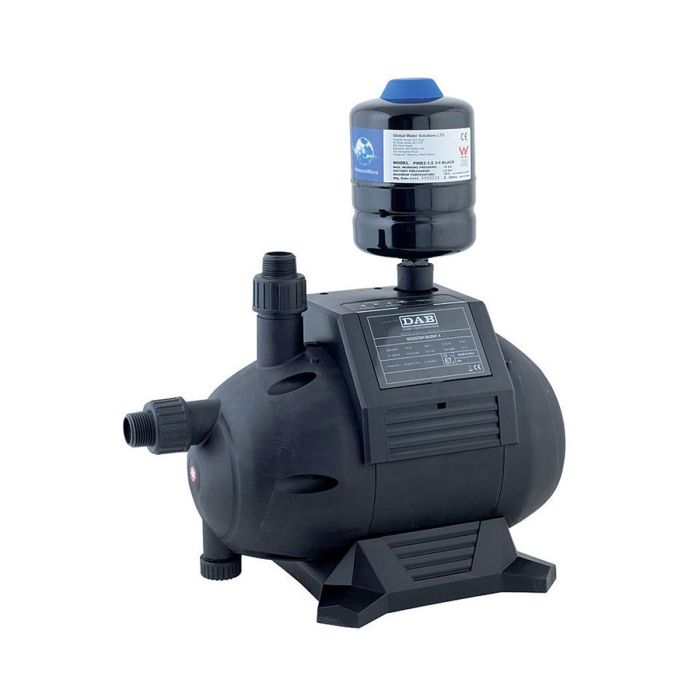

DAB Booster Silent 5M

Be the first to review this product

£593.91

Out of stock

SKU

8019203876109

Automatic pump of the highest quality for up to five water points.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

The DAB Booster Silent water pressure boosting pump is suitable for increasing pressure in your water pipes, for supplying water (e.g. rainwater for the toilet or cleaning), or for using water from wells and tanks for irrigation purposes. The 5.7-bar 5M version is the most common model for any household.

The pump's main feature is that it is so quiet (67 dB). Thanks to its 2-litre water reservoir, the pump does not constantly switch on/off if water is required. which greatly reduces energy consumption.

The pump is fitted with an electronic control feature, by means of which possible faults in your water circuit are indicated clearly, as well as with a dry-running protection system and a non-return valve.

Summary

Provides sufficient pressure and capacity for about five sprinklers
The hose that can be used for this pump has a diameter of 1" for the delivery connection and 1" for the suction connection
Draws water from a maximum depth of 8 metres
The maximum delivery head is 57 metres, which equals 5.7 bar output

Contents of the kit

DAB Booster Silent 5M Booster Pump
Manual

More Information

More Information
Manufacturer code	60122699
Input power (W)	1250 Watt
Max. pump capacity	5,200 l/h
Max. delivery head	57 m / Pressure 5.7 bar
Manuals	Has manual
Dimensions (l x w x h)	45,5 x 28 x 33 cm
Delivery diameter	1"
Max. suction depth	7 metres
Max. temperature of liquid	35°C
Suction diameter	1"
Input power (hp)	1,7 hp
Cable type	H07RN-F
Cable length	1,8 metres
Manufacturer	DAB
Warranty	2-year
Product package	DAB Booster Silent 5M incl. 2 litre water reservoir, manual
Golden Product Promo	No
PDP Delivery Date	Expected as of 19-05-2025
PLP Delivery Date	Expected as of 19-05-2025
Faq Question 1	What is the advantage of a booster pump versus a garden pump?
Faq Answer 1	<p>A booster pump is essentially a garden pump with a number of extra components, such as: An integrated pressure switch, which ensures that this pump switches on and off automatically if water supply is needed. A pressure vessel (water tank), which ensures that you instantly have water at your disposal, and the pump does not need to switch until the water in the pressure vessel starts to run low. As a result, the booster pump does not need to switch on if only small amounts of water (a few litres) are needed. First the water from the pressure vessel is used and supplied where it is required. As soon as the water level in the pressure vessel is about to drop too low, the pump switches on automatically to refill it. In addition to saving energy, the system runs much more quietly, and ensures that you always have water instantly at your disposal.</p>
Faq Question 2	What can I use this pump for?
Faq Answer 2	<p>This pump is suitable for the following purposes: Watering, spraying, and irrigating a garden or lawn Hosing down a terrace, decking or garden furniture Supplying water/rainwater for your washing machine, toilet, sink, shower, etc. Increasing pressure in your water pipes</p>
Faq Question 3	Can this pump be connected to the existing mains water pipes in my house?
Faq Answer 3	<p>Yes, this pump can easily be connected to the existing mains water pipes in your house.</p>
Faq Question 4	What kind of water can I pump with this model?
Faq Answer 4	<p>The DAB Booster Silent 5M is only suitable to pump clean water, i.e. water that is free from very large solid particles (< 2 mm). This means that you can also pump water from a canal or ditch, but subject to certain conditions: We recommend making use of a suction hose with a brass connection (better filtration). We recommend making use of a pre-filter (this allows for extra filtering before the water enters the pump). In addition, the water should not be colder than 0°C and not warmer than 35°C.</p>
Faq Question 5	Is the pump suitable for continuous operation?
Faq Answer 5	<p>Yes, this pump is perfect for continuous operation.</p>
Faq Question 6	Is it advisable to use a pre-filter?
Faq Answer 6	<p>If the water is virtually the same as drinking water, no pre-filter is needed. However, if the water pumped contains solids - for example, water from a ditch or canal - we recommend using a pre-filter.</p>
Faq Question 7	How should the pump be installed?
Faq Answer 7	<p>The pump and the entire connected system need to be protected against frost and inclement weather conditions. Therefore, place the pump in a dry location with an ambient temperature from 5°C to 40°C, to allow the motor to cool sufficiently. Furthermore, all connected pipes must be absolutely watertight and airtight to prevent damage and loss of performance.</p>
Faq Question 8	The water to be drawn in by the pump is situated at a level lower than nine metres. How do I handle this?
Faq Answer 8	<p>Generally, garden pumps and booster pumps can draw in water from a maximum depth of nine metres. If the water is occasionally at a depth lower than nine metres, you will need to use a borehole pump, which is placed in the well and usually has a delivery head of 50 metres and over. Check our range of borehole pumps.</p>
Faq Question 9	What happens if the water from the source is finished?
Faq Answer 9	<p>This is a water-cooled model pump, which means that it cools itself with the water it pumps. When the water from the source is finished - for example, if the water level has dropped below nine metres - the pump will normally keep running with no water supply. This is referred to as 'dry running' and may cause the pump to become overheated, which could ruin it. However, the pump is fitted with an integrated dry-running protection system, which protects the pump immediately from running dry. The DAB Booster Silent 5M switches off automatically when no water can be supplied.</p>
Faq Question 10	Is the pump suitable for a drinking-water system?
Faq Answer 10	<p>Yes, this pump is suitable for a drinking-water system.</p>
Faq Question 11	Is the pump supplied ready to use?
Faq Answer 11	<p>Yes, you can start using the pump immediately, but it is not supplied with accessories such as a suction hose, a filter, and a discharge hose. If needed, these can be ordered conveniently from our webshop together with your pump. Click here for available accessories for the DAB Booster Silent 5M..</p>
Faq Question 12	What items does this kit include?
Faq Answer 12	<p>DAB Booster Silent 5M, including a 2-litre water tank Manual</p>
