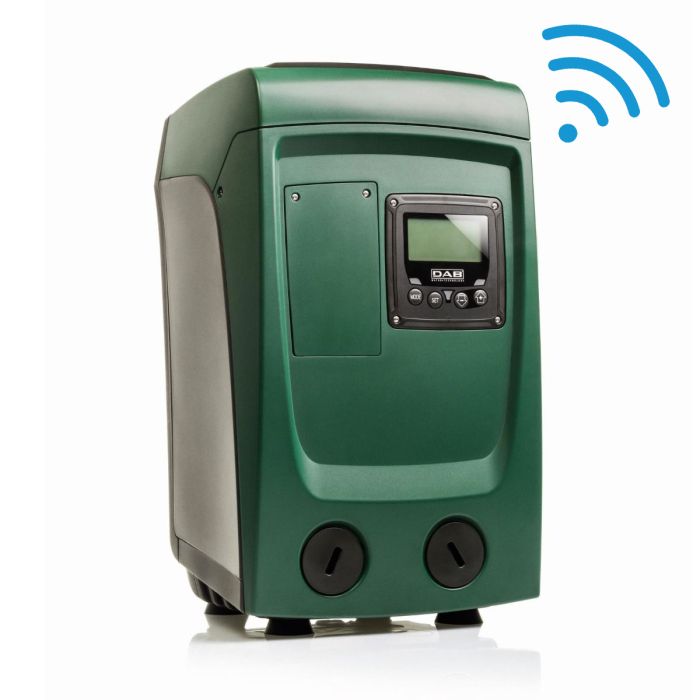

DAB Esybox mini 3

The Esybox mini 3 is the latest innovation by manufacturer DAB. Following the great success of the DAB Esybox, the Esybox mini 3 model is equipped with the same facilities, but is even more compact, lighter, and favourable in price. If you want a pump that you can leave alone once it has been installed, then the DAB Esybox mini is the one for you. The Esybox mini 3 is equipped with a speed controller, which ensures that the pump runs only at the RPM required to pump the water, under the right pressure, to a particular location. This model is fully automated and very quiet. which, in addition to saving energy, will also extend the pump's life. This pump can be used in places with a high water requirement: for example at home (multiple taps, showers, baths, dishwashers, washing machines, toilets, etc.), but also for larger irrigation systems. With this pump, you can easily control various groups with the right capacity and pressure.

The Esybox mini 3 has a fully corrosion-resistant, water-cooled motor. The motor can pump a maximum of 4,800 litres per hour by making use of its 1-litre pressure valve, which comes with a 2-year warranty without maintenance requirements. Furthermore, the Esybox mini 3 is fitted with a number of technical features, including:

• an electronic speed regulator, ensuring consistently constant pressure
• a speed controller with a start/stop function for specific water pressure in designated areas.
• multi-step, providing increased water pressure when required.
• various sensors, such as: an electronic pressure-difference sensor, a built-in temperature sensor, and a flow-rate / capacitance meter

Whether you install the DAB Esybox mini 3 horizontally or vertically, in a ventilated area or a small space, this pump can handle any situation. The integrated non-return valve allows for a horizontal and a vertical setup, and the DAB Esybox mini 3 is also about 60% more compact compared with traditional installations. Most importantly: the Esybox mini 3 has a protective mechanism that prevents icing within the system, because the pump switches on instantly to heat itself up when temperatures drop below freezing point. This pressure-boosting system is fitted with a 70x40 mm, high-resolution LCD display, and the user-friendly interface makes the DAB Esybox mini 3 very easy to control. Furthermore, the pump body is equipped with anti-vibration feet, which makes the Esybox mini 3 even more quiet and comfortable; it has also been designed for a horizontal and vertical setup.

Real-time control and insights into your usage with the DAB Live! App

The DAB Live! App is the smart solution for users of the Esybox and Esybox Mini 3. With this user-friendly app, you have instant access to real-time data about your water and energy consumption. The app helps you save energy and optimise your water usage effortlessly. With the DAB Live! App, you can not only monitor how much water you use each day and how much energy the pump consumes, but you can also adjust your Esybox settings from anywhere in your home. The app offers you full control and helps you proactively manage your consumption. Thanks to the intuitive interface, everyone can contribute to a greener world, hassle-free.

Benefits of the DAB Live! App:

• Instant insights into your water and energy consumption;
• Power Shower mode for increased water pressure while showering;
• Sleep mode for quiet and energy-efficient operation;
• Voice assistance with Alexa and Google;
• Water-saving tips;
• System status and remote support.

Make your life easier with the DAB Live! App and discover how you can manage your water and energy consumption more efficiently. Learn more about the features and benefits of the DAB Live! App.

Summary

• Provides sufficient pressure and capacity for five sprinklers
• Provides sufficient pressure and capacity for a house and/or HOA apartment building (three units)
• The hose that can be used for this pump has a diameter of 1" for the delivery connection and 1" for the suction connection
• Draws water from a maximum depth of 8 metres
• The maximum delivery head is 55 metres, which equals 5.5 bar output
• Real-time control and insights into your usage with the DAB Live! App

Contents of the kit:

• DAB Esybox mini 3 with an integrated 1-litre water tank
• 4 anti-vibration feet
• Manual
