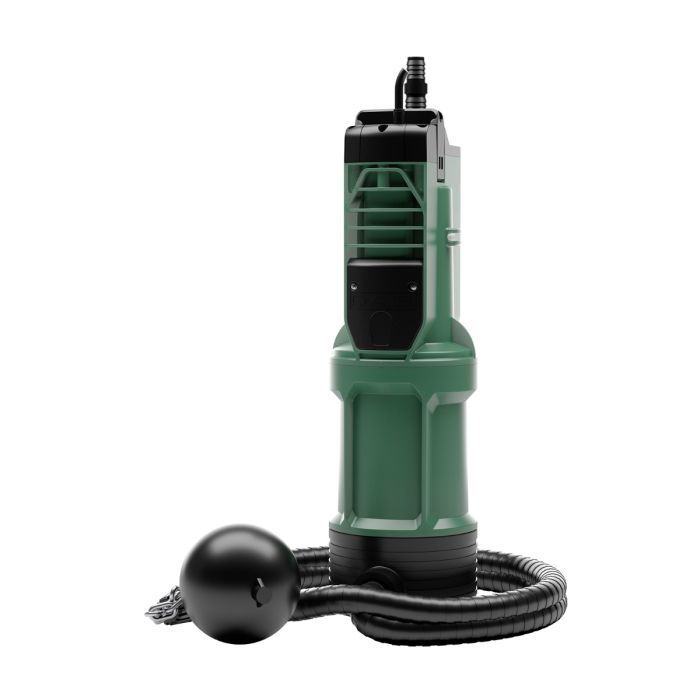

DAB Kit Divertron X-S 900 M

The DAB Kit Divertron X-S 900 M is an underwater pressurized water system suitable for various applications, such as reusing rainwater from a tank or water butt, or extracting groundwater from a well, to use in and around the house, or for irrigation purposes.

This pump is equipped with a built-in pressure switch, so that the DAB Divertron switches on and off automatically based on water demand. The water requirement arises as soon as you open a tap, for example. The pump then receives a signal to start automatically. When you close the tap again, the pump also switches off automatically.

The unique thing about the DAB Kit Divertron X-S 900 M is that it is equipped with a separate suction connection. The supplied suction set is connected to this connection. This suction set consists of a suction hose and a coupled float ball. The float ball ensures that the suction hose draws in the water a few centimeters below the water surface. This is the cleanest water available in any source. This offers you the possibility to use the pump in water that is slightly polluted or with sand or dirt floating on the surface.

The borehole pump is made of plastic and stainless steel. In addition, the pump is low-noise, because it must be placed completely underwater. An additional advantage is that this pump is equipped with a built-in dry-running protection. This means that the pump automatically switches itself off if the water pump can no longer handle water, for example because your water source has become empty. This protects your pump against damage caused by dry running.

How it works

The DAB Divertron pumps are suitable for continuous use (can operate continuously). This is not the case with all pumps. DAB water pumps are characterized by this and are unique because of the high quality standards. If you want to use the pump continuously for a longer period of time (>3 hours), it is best to choose a water pump from DAB.

Types of water

This underwater pressurized water system is only suitable for pumping "clean" water. It is important that the DAB Divertron hangs at least 50 centimeters above the bottom, so that the pump does not suck in sand/gravel or other dirt that may lie on the bottom of the source/room.

Pump capacity and delivery head

The DAB Kit Divertron X-S 900 M pumps a maximum of 5,700 liters per hour, which is also referred to as the pump capacity. Another important feature of this pump is the head of 45 meters, which is equivalent to a pressure of 4.5 bar. Due to the combination of the number of liters per hour and the pressure, it is possible to put 1 to 5 sprinklers to work at the same time. The hose socket can be screwed into the pump and, on the other side, a 3/4'' or 1'' hose can be pushed over the hose socket. However, it is still necessary to secure it with a hose clamp.

All the advantages of the DAB Kit Divertron X-S 900 M at a glance:

• Suitable for continuous use;
• Pumps up to 5,700 liters per hour;
• Head 45 meters / 4.5 bar;
• Low-noise, because the pump is placed in the water;
• Includes suction set with suction hose and float ball;
• Can control an average of 5 sprinklers at the same time;
• Turns on and off automatically;
• Protected against dry running;
• The hose that can be used for this pump has a diameter of 1" for the pressure connection.
