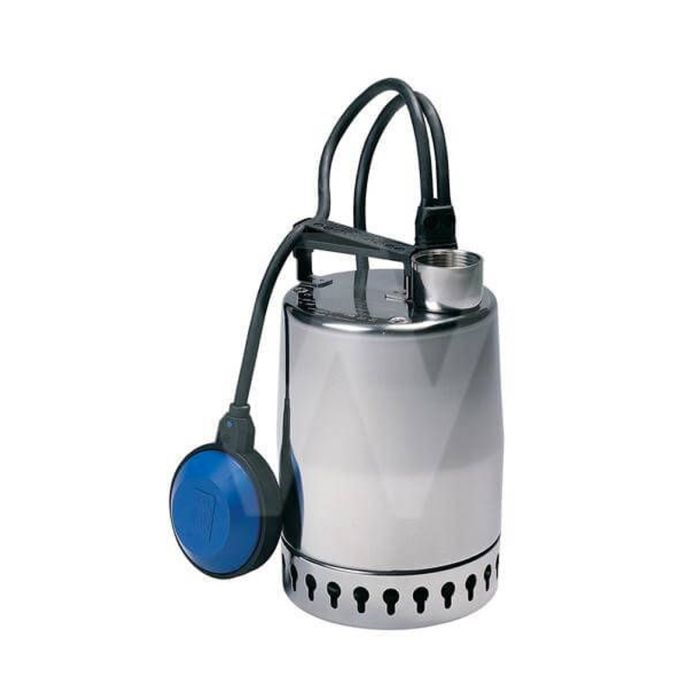

Grundfos Unilift KP 350 A1

The Grundfos Unilift KP 350 A1 Submersible Puddle Pump is a beautiful, impressive looking device. This lightweight single-stage pump can process both clean and slightly dirty water. The stainless steel pump body – made from one piece – makes the pump very robust, solid, and easy to maintain. It can be used in temporary and permanent freestanding setups and is also suitable to be installed in collecting tanks. The pump is fitted with a semi-open impeller that can process solids up to a diameter of 10 mm. This makes it ideal for pumping jobs in and around the house. The pump also has automatic overload protection, which switches the motor off if there is a risk of overheating. The motor automatically switches back on after it has cooled down to the correct temperature.

Models

When it comes to capacity and delivery head (the height at which a pump can raise water, you can choose between the Grundfos Unilift KP 150, the Grundfos Unilift KP 250, and the Grundfos Unilift KP 350, each having the following specifications:

• Grundfos Unilift KP 150 (8,000 l/h / 5.5m delivery head)
• Grundfos Unilift KP 250 (11,000 l/h / 7.5m delivery head)
• Grundfos Unilift KP 350 (14,000 l/h / 9m delivery head)

In addition, the Unilift KP series comprises a variety of models:

• M – without a float (switches on/off when it is connected to/disconnected from the mains)
• A1 – with a float (switches on/off automatically based on the water level)
• AV1 – with a vertical float (switches on/off automatically based on a low water level)

Applications

This widely applicable Grundfos submersible pump can be used for a variety of pumping jobs in and around the house and business premises:

• Water and rainwater in the agricultural sector
• Water from rivers and lakes
• Rain, drainage, and flood water
• Water to fill/empty containers, ponds, tanks, etc.
• Water from showers, washing machines and sinks below sewer level
• Swimming pool water
• Ditch drainage water
• Groundwater (reduction)
• Effluent from septic and treatment systems from houses
• Effluent from viaducts, underpasses, etc.
• Drainage water from sprinkler systems in garages.

Water level

This pump is fitted with a float switch, which means that it switches on/off automatically based on the water level.

• Switches on automatically at a water level of 30 cm
• Switches off automatically at a water level of 15 cm
• In manual mode (fastening/raising the float), this pump drains water to a level of 5 cm

If you are looking for a pump that leaves less water/switches on automatically sooner, you can opt for a submersible puddle pump.

Summary

• Supplied with a non-return valve and a hose socket
• The pump has a 1.25" outlet, to which the hose we supply can be connected directly
• The pump's maximum submersion depth is 7 metres
• A maximum delivery head of 9 metres
• Float for switching the pump on/off automatically based on the water level

Contents of the kit

• Grundfos Unilift KP 350 A1 Submersible Puddle Pump
• Manual
