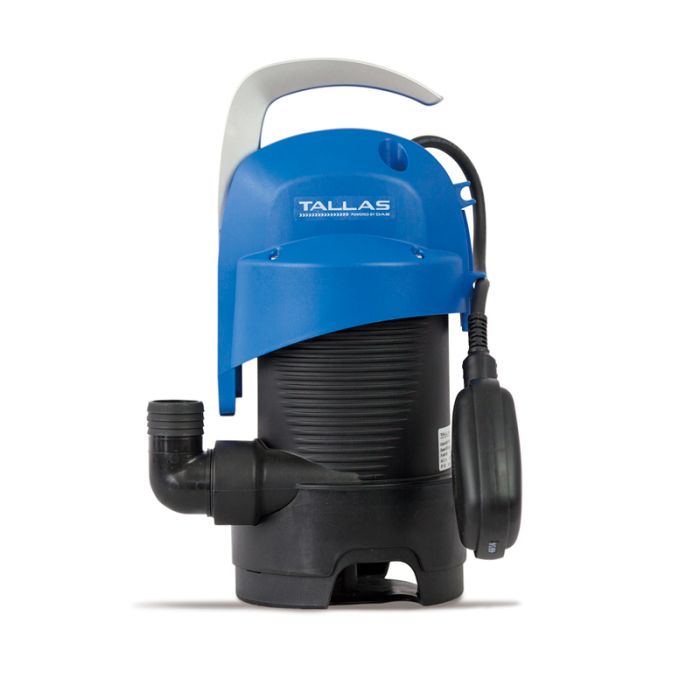

Tallas D-DW 400
The Tallas D-DW 400 is a high-quality, light but durable waste water submersible pump. The pump is both suitable for occasional use or for fixed placement in a basement, well or other area where clean or waste water must be automatically removed. The pump is very compact and can therefore be placed in small spaces (approx. 28 cm).
The Tallas D-DW 400 also allows you to adjust the culvert on the pump grid. As a result, you can use the pump for just clean water or a combination of clean and waste water. Adjusting the culvert affects the remaining water level once the pump shuts down. The smaller the culvert on the pump grid, the less remaining water in the room.
You can set the pump to automatically turn on at different water levels. The separate float switch cable can be attached at two places on the pump, allowing you to easily determine the level at which the pump powers on. Moreover, the pump's lever can be folded in and out as desired.
- The pump outlet is 1.25".
- The maximum submersion depth of the pump is 7 metres
- The maximum head rate is 7 metres
This pump has a float switch, which means it automatically switches on and off based on the water level.
- Switches on automatically when the water reaches 28 cm
- Switches off automatically when the water reaches 10-15 cm
- On manual mode (when the float switch is fixed/held), this pump will pump the water to 5 cm
Are you looking for a pump that leaves less water / switches on automatically sooner? In that case, you should choose a submersible utility pump.
| Manufacturer code | 60171885. |
|---|---|
| Input power (W) | 440 Watt |
| Max. pump capacity | 8,400 l/h |
| Max. delivery head | 7 m |
| Insulation class | B |
| Manuals | Has manual |
| Frequency | 50 Hz |
| Dimensions (l x w x h) | 20,5 x 15 x 28,1 cm |
| Delivery diameter | 1 ¼" |
| Solid particles | 30 mm |
| Max. temperature of liquid | 40°C |
| Switch level | Switch on: 28 cm | Switch off: 10-15 cm |
| On manual mode, pumps down to | 5 cm (when the float switch is fixed / held) |
| Protection rating | IPX8 |
| Current | 1.6 A |
| Cable type | H05RN-F |
| Cable length | 10 metres |
| Manufacturer | Tallas |
| Warranty | 2-year |
| Product package | Tallas D-DW 400, elbow, manual, plug adaptor to G-3 pin (British) |
| Golden Product Promo | No |
| Product Best Choice Excerpt | For drain lightly contaminated water |
| PDP Delivery Date | Delivery in 1-2 working days |
| PLP Delivery Date | Delivery in 1-2 working days |
| Faq Question 1 | How does a float work and what can I do with it? |
| Faq Answer 1 | <p>A float ensures that your pump switches on and off automatically at a certain water level. This is very practical if you want to use the pump in frequently flooded spaces, because with a float the pump does not need to be switched on and off each time the space is flooded. This pump is also fitted with a float switch, which means that it can be used in manual or automatic mode.</p> |
| Faq Question 2 | At what water level does the pump switch on/off automatically when the float is used? |
| Faq Answer 2 | <p>You have the option of determining the pump's switch-on level by attaching the float to the pump at a set height. The minimum switch-on level is about 240 mm, whereby the pump switches off automatically at a water level of 60-100 mm. In order to ensure that the entire space does not maintain a water level of 60-100 mm after the pump automatically switches off, the device is often placed in a sump pit. This ensures that the pump is situated lower in the space, so that the device continues pumping until a water level of 60-100 mm has been reached in the sump pit. In this way, the rest of the space is pumped practically dry, with only some water left in the pit.</p> |
| Faq Question 3 | In what situations can I use this pump? |
| Faq Answer 3 | <p>This pump is suitable in the following situations: for draining a cellar and/or crawl space In a permanent setup, for example, to automatically drain a cellar/crawl space once the water level has been reached. for draining a basin for draining a swimming pool</p> |
| Faq Question 4 | Can this pump be set up in small spaces? |
| Faq Answer 4 | <p>This pump requires a space with a minimum diameter of 28 centimetres and can therefore be set up practically anywhere.</p> |
| Faq Question 5 | Is the pump supplied ready for use? |
| Faq Answer 5 | <p>Yes, this pump is supplied with every component needed for immediate use.</p> |
| Faq Question 6 | Which items are included in the package? |
| Faq Answer 6 | <p>Tallas D-DW 400 90-degree elbow fitting Manual</p> |
-
