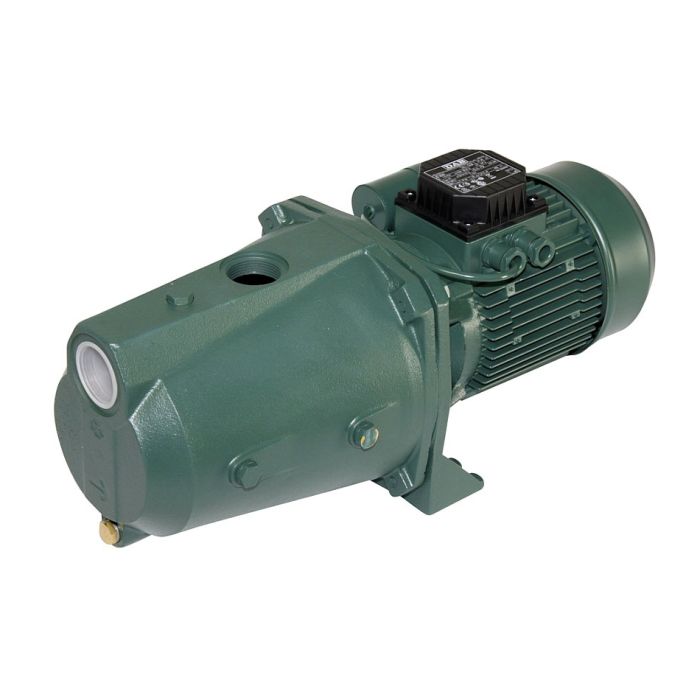

DAB Jet 200 M

Rating:

100 % of 100

3 Reviews Add Your Review

Special Price £563.66 Regular Price £603.99

In stock

SKU

8059893329356

High-quality cast-iron pump, for irrigation with up to 10 sprinklers!

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

The DAB Jet 200 M is a self-priming garden pump with an extra high capacity. With a maximum flow rate of 10,500 l/h, the pump can be used in a large-scale situation − for example, in agriculture, and is ideal for controlling a large number of sprinklers, or for pumping vast amounts of water within a very short time

Summary

Provides sufficient pressure and capacity for an average of nine sprinklers
The hose that can be used for this pump has a diameter of 1.25" for the delivery connection and 1.5" for the suction connection.
Draws water from a maximum depth of eight metres
The maximum delivery head is 41 metres, which equals a 4.1 bar output

Contents of the kit

DAB Jet 200 M
Manual

More Information

More Information
Manufacturer code	60211843
Input power (W)	2000 Watt
Max. pump capacity	10,500 l/h
Max. delivery head	41 m / Pressure 4.1 bar
Insulation class	F
Manuals	Has manual
Frequency	50 Hz
Dimensions (l x w x h)	44 x 17,4 x 19,7 cm
Delivery diameter	1 ¼"
Max. suction depth	8 m
Max. temperature of liquid	40°C
Suction diameter	1 ½"
Engine speed	2850 rpm
Input power (hp)	2,7 hp
Protection rating	IP44
Current	9.0 A
Cable length	No cable
Manufacturer	DAB
Warranty	2-year
Product package	DAB Jet 200 M, manual
Golden Product Promo	No
PDP Delivery Date	Delivery: ± 3 weeks
PLP Delivery Date	Delivery: ± 3 weeks
Faq Question 1	What kind of water can I pump with this model?
Faq Answer 1	<p>The DAB Jet 200 M is only suitable to pump clean water, i.e. water that is free from large solid particles (< 2 mm). This means that you can also pump water from a canal or ditch, but subject to certain conditions: We recommend making use of a suction hose with a brass connection (better filtration). We recommend making use of a pre-filter (this allows for extra filtering before the water enters the pump). In addition, the water should not be colder than 0°C and not warmer than 35°C.</p>
Faq Question 2	What can I use this pump for?
Faq Answer 2	<p>This pump is suitable for the following applications: Watering, spraying, and irrigating your garden or lawn Hosing down a terrace, decking, or garden furniture Draining spaces or wells Supplying water/rainwater for your washing machine, toilet, sink, or shower in a separate circuit</p>
Faq Question 3	Is the pump suitable for continuous operation?
Faq Answer 3	<p>Yes, this pump is perfect for continuous operation.</p>
Faq Question 4	Is it advisable to use a pre-filter?
Faq Answer 4	<p>If the water is virtually the same as drinking water, no pre-filter is needed. However, if the water pumped contains solids − for example, water from a ditch or canal − we recommend using a pre-filter.</p>
Faq Question 5	How should the pump be installed?
Faq Answer 5	<p>The pump and the entire connected system need to be protected against frost and inclement weather conditions. Therefore, place the pump in a dry location with an ambient temperature from 5°C to 40°C, to allow the motor to cool sufficiently.</p>
Faq Question 6	What is the advantage of a suction hose with a brass connection versus a plastic connection?
Faq Answer 6	<p>A suction hose with a brass connection is more solid and is fitted with a better suction filter. That is exactly why we recommend installing this type of hose if you plan to pump water from a canal or ditch.</p>
Faq Question 7	The water to be drawn in by the pump is situated at a level lower than nine metres. How do I handle this?
Faq Answer 7	<p>Generally, garden pumps and booster pumps can draw in water from a maximum depth of nine metres. If the water is occasionally at a depth lower than nine metres, you will need to use a borehole pump, which is placed in the well and usually has a delivery head of 50 metres and over. Check our range of borehole pumps.</p>
Faq Question 8	What happens if the water from the source is finished?
Faq Answer 8	<p>This is a water-cooled model pump, which means that it cools itself with the water it pumps. When the water from the source is finished − for example, if the water level has dropped below nine metres − the pump will keep running with no water supply. This is referred to as 'dry running', and may cause the pump to become overheated, which could ruin it. You can prevent this from happening by using a dry-running protection system, which ensures that the pump switches off automatically when no water is supplied.</p>
Faq Question 9	Is the pump suitable for a drinking-water system?
Faq Answer 9	<p>No, the pump is made of cast iron, and is therefore unsuitable for a drinking-water system.</p>
Faq Question 10	Can this pump be connected to the existing mains water pipes in my house?
Faq Answer 10	<p>This pump can be connected to your existing mains water pipes by means of a control system, but we advise using a booster pump if you want to optimise your water-supply pressure. Click here if you want to know how a booster pump works.</p>
Faq Question 11	Is the pump supplied ready to use?
Faq Answer 11	<p>This pump is supplied without a cable connection and accessories such as a suction hose, filter, and discharge hose. If needed, these can be ordered conveniently from our webshop together with your pump. Click here for available accessories for the DAB Jet 200 M..</p>
Faq Question 12	What items does this kit include?
Faq Answer 12	<p>DAB Jet 200 M Manual</p>
