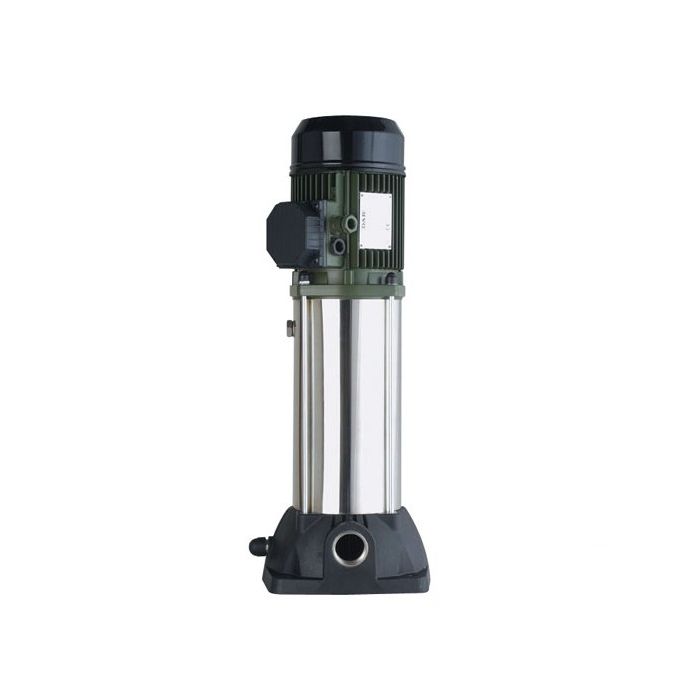

DAB KVC 60-30 M
The DAB KVC 60-30 M is a robust centrifugal pump from top brand DAB. This centrifugal pump is suitable for pumping large amounts of water and is therefore also ideally suited for irrigating larger plots of land or as a pressure-boosting system.
The DAB KVC series is known for its two outlets on the pump. You may choose between the outlet on the bottom of the pump or the outlet on the pump housing. One of these outlets is sealed by default, but you are free to adjust the pump to your liking.
Given that this is a centrifugal pump, several precautionary measures must be taken before use. This because a centrifugal pump must be directly supplied with water.
- Always use a suction hose with check valve.
- Completely fill the hose with water
- Fill the entire pump housing with water
After taking these precautionary measures, you can directly start using your pump. Moreover, the overall lifespan of the pump will also be significantly increased.
- The hose used for this pump has a delivery diameter of 1.25" and suction diameter of of 1.25"
- Sucks up water from a maximum depth of 8 m
- The maximum head rate is 82 m, which is equal to an output of 8.2 bar
| Manufacturer code | 60183414 |
|---|---|
| Input power (W) | 1450 Watt |
| Max. pump capacity | 3,300 litres per hour |
| Max. delivery head | 82 metres or max. 8,2 bar output |
| Manuals | Has manual |
| Dimensions (l x w x h) | 22,1 x 23,5 x 65,5 cm |
| Delivery diameter | 1 ¼" |
| Max. temperature of liquid | 40°C |
| Suction diameter | 1 ¼" |
| Input power (hp) | 2 hp |
| Manufacturer | DAB |
| Warranty | 2-year |
| Golden Product Promo | No |
| PDP Delivery Date | Delivery: ± 3 weeks |
| PLP Delivery Date | Delivery: ± 3 weeks |
-
